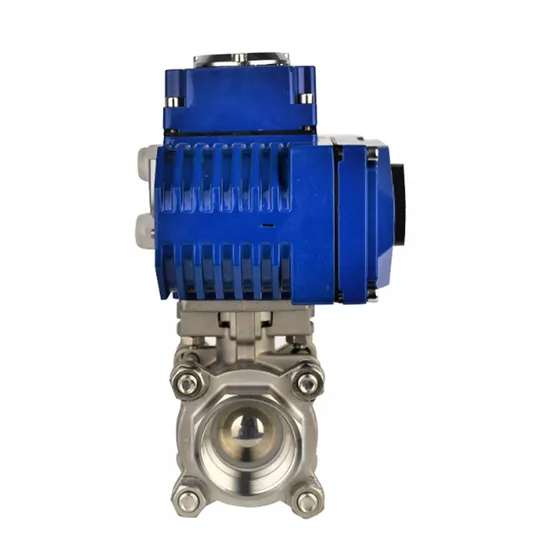

2 Way 12V 3 Piece Ball Valve on off Electric Motorized Actuator Water Flow Control Ball Valve

Basic Info.

Model NO.	MSBV85
Connection Form	Thread
Driving Mode	Manual
Nominal Pressure	PN1.0-32.0MPa
Channel	Straight Through Type
Structure	Floating Ball Valve
Type	Floating Ball Valve
Temperature	Normal Temperature
Application	Industrial Usage
Cert.	ISO;Ts;CE
Color	Stainless Steel
Transport Package	Carton Box+Plywood Case
Specification	1/4"~2"
Trademark	xbvalve
Origin	Taizhou, Zhejiang, China
HS Code	8481804090
Production Capacity	100000PCS/Year

Product Description

2 Way 12V 3 Piece Ball Valve On Off Electric Motorized Actuator Water Flow Control Ball Valve

High Qualtity 3PC Factory Ss Ball Valve With Mounting Pad
Basic Info.
Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
REDUCED PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308 Main Parts and Materials
Main Dimensions
Brass Ball Valve with Mounting Pad/ Motor Actuactor Ball Valve

Description: Brass forged body/s.s body, brass ball chrome plated/s.s ball, brass stem/S.S stem, for water treatment system, Solar hotwater system and HVAC system. 1. Application: Water treatment system, solar hotwater system and HVAC system. 2. Material: Forged Brass (CW617N, CW614, CW602N, ASTM C37700) or S/S304 or S/S316 3. Size: 1/2'', 3/4'', 1'', 11/4'', 11/2'', 2'', 21/2'', 3'', 4'' 4. Surface: Brass Color, Nickle plated are available 5. Thread Standard: According to ISO228, ISO7/1, DIN2999, or NPT
6. Delivery Time: within 30~45 days after received payment.7. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).8. Package: Inner box, outer carton, then by pallet.

FAQ

Q1: Can you provide OEM service?

Yes, we can. But you shall send the authorization letter to us so that we can put your

company LOGO on the products legally.

Q2: Packaging and shipping

Normally it's packed in carton. Or it can be packed as your requests.

Q3: How can I contact you?

Please contact us by Trademanager, Email, Whatsapp and Phone, also warmly welcome you to visit our company at your convenience.

Model NO.	YSD-BBVMP-6	Type	Floating Ball Valve
Function	Directional	Temperature	-20~232
Application	Water,Oil,Air	Size Range	1/4"~2"
Body Material	Brass	Test Standard	API 598
Place of Origin	Taizhou	Transport Package	Carton Box+Plywood Case
Specification	CE	Trademark	xbvalve
Origin	China	HS Code	8481804090
Production Capacity	100000PCS/Year

Product Description

Product Name				SS Ball Valve With Mounting Pad
Materials				SS304 or SS316L
Valve Stem Design				PTFE according to FDA 177.2600
Standards				3A DIN SMS DS ISO RJT
Size				1" - 4" or DN10 - DN100
Seal Material				Silicon, EPDM, PTFE
Packing:				Usually bubble pack for each valve within carton box or plywood case, or special packaging upon customer requirements.
