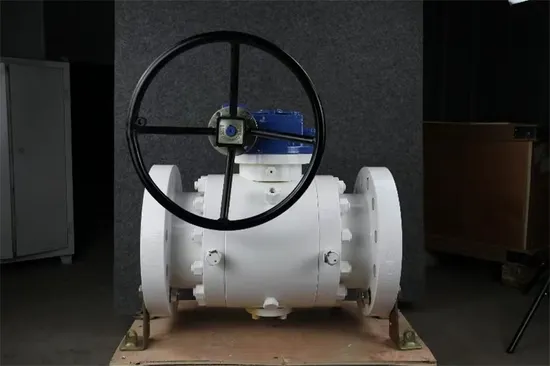

Pneumatic Fix Forged on

Basic Info.

Model NO.	Q647F
Driving Mode	Manual
Nominal Pressure	ANSI CLASS 150-900
Channel	Straight Through Type
Structure	Fixed Ball Valve
Type	Fixed Ball Valve
Function	Blow-Down Valve
Temperature	High Temperature
Standard	API 6D,BS 5351,GB/T 19672
Application	Industrial Usage
Pressure	900lb
Body	Wcb
Ball	F316
Stem	F316
Seat	PTFE
Flange	Asmeb16.5
Design	API6d
Test	API598
Transport Package	Wooden
Specification	DN50-DN1200
Trademark	yuefeng
Origin	Zhejiang Lishui
HS Code	8481804090
Production Capacity	5555

Product Description

MAIN FEATURES
The side entry trunnion mounted ball valve has been designed two piece body type or three piece body type and with two floating seats, which are movable under the pressure of medium. Under the bottom of seats, seat pre-loading springs are positioned to ensure two floating seats can attach the ball's surface tightly, other more, pressure of medium also can push seats to attach ball tightly to ensure sealing more reliable.
The trunnion ball valve is equipped with a movable seat seal ring which can generate displacement under the pressure of medium. In case that any medium pressure exists, the pressure will press the valve seat seal ring onto the ball tightly, guaranteeing the sealing performance of the ball valve.

Design Features
The ball valve are designed in accordance with ISO14313,API 6D,BS 5351,GB/T 19672;
Simple structure with good sealing performance and small torque;
Full bore and reduced bore design with the minimum flow resistance (zero actually);
Emergency sealant injection;
Cavity pressure self relief;
Independent ball and stem;
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Valve seat function DBB, DIB-1, DIB-2;
Optional extended bonnet.

Product Range
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter:2"~60"(DN50~DN1500)
End Connection: RF, RTJ, BW
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-46ºC~+200ºC
Operation: Wrench, worm gear, electric, pneumatic, gas over oil actuator and electro-hydraulic actuator

Certificates & Test reports

Packing&Shipping
FAQQ:Are you a trading company or a manufacturer?We are a manufacturer with a 13,000 square metre factory.Q:Can you provide assembly drawings?Yes, we will provide the relevant drawings as soon as possible if you need them.Q:How do you guarantee the quality of your products?A: Before the products leave the factory, our quality inspectors will inspect each product before shipment to ensure the pass rate.Q: Can you produce different standard valves according to customers' requirements?A: Yes, please provide specific details, such as model, size, pressure, material and so on.Q:How long is your delivery time?A: Usually 15-30 days, it depends on the order quantity and our storage.

Brand:	Yuefeng
Applicable Media:	Water, Oil, Gas, Nitric Acid, Acetic Acid
Certification:	CE/RoHS/ISO9001-2008
Original	Lishui,Zhejiang Province
Packing:	Plastic Bag, Carton & Plywood Case/According to customers' requirement.
Payment:	T/T, L/C, D/P, Western Union.
Port:	Shenzhen, Customers' Request
Delivery Time:	Within 15days after receiving T/T deposit Payment
Term of Delivery:	EXW/FOB/CNF/CIF, Customers' Request
