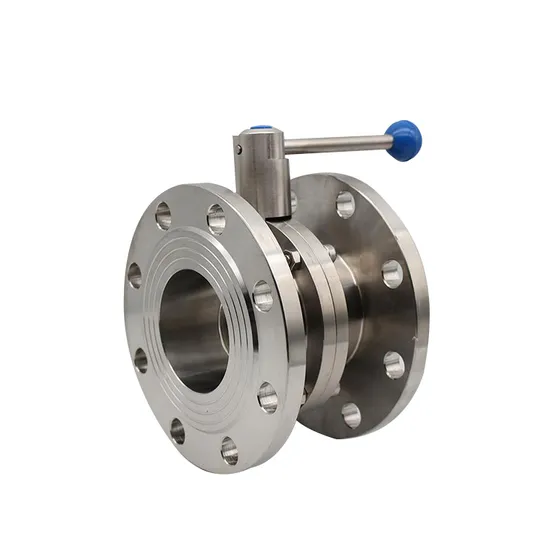

SS304 Stainless Steel Sanitary Butterfly Valve for Fluid Control

• Overview
• Product Description
• Detailed Photos
• Certifications
• Company Profile
• Our Advantages
• FAQ

Overview

Basic Info.

Model NO.	Sanitary Butterfly Valve
Structure	Customizable
Seal Form	Force/Auto/Supercharging Pressured Sealed
Valve Stem	Orbit/Extended/Normal
Work Pressure	Low Pressure (Pn<1.6mpa)
Working Temperature	Medium Temperature (120°C<T<450°C)
Material of Seal Surface	Soft Sealed
Valve Body	Casting
Standard	API, GB, DIN, BS, JIS
Application	Industrial Usage, Water Industrial Usage, Household Usage
Production Period	in 15-60 Days Upon Order Quantity
Certificates	ISO14001,ISO9001,ASME,CCC,CE
Temperature Range	-60 to 450 °f
MOQ	1PCS
Transport Package	Seaworthy Package
Specification	3/4"-6"
Trademark	Rongrui
Origin	China
HS Code	8481804090
Production Capacity	5000PCS

Product Description

Zhejiang Rongrui Pipe Technology Co., Ltd is located in the famous stainless steelmarket--Wenzhou, Zhejiang,which focuses on the production, research anddevelopment, and sales of stainless steel industrial products.Our company covers an area of near 12000m2,nearly 10000m2 production workshop. We are a source factory, with 8 years of experience in physical productionexperience that can provide favourable prices. A large stock of production, 10 largeproduction equipment and 28 small and medium-sized supporting equipment canoffer customers earliest delivery date. 35 craftsmanship processes adhering tonational standards, 21 rounds of rigorous quality control provide customers with themost reassuring productions.

Q: Are you a manufacturer? A: Yes, we own our factory in Zhejiang province and you are welcome to visit our factory.Q: What can we buy from you? A: Stainless steel pipes, pipe fittings,valve,flange and non-standard customized.(All above are sanitary grade)Q:Why we choose your products? A: We are confident to provide customers with satisfactory products at the suitable price.Q:When can I get your reply after the inquiry? A: Within 15minutes during working time, within 12 hours during non-working time.Q:What product information should we provide? A: You need to provide the grade, diameter, thickness,the number of tons and your demands.Q:How long is your delivery time? A: Within 5 days for stock delivery, 15-30 days for custom delivery.Q:Can you provide sample? A: Sure, we provide sample for free.If you are interested in our products, contact with us then we will send you our sample.

Product Description

Standard	3A,SMS,DIN,ISO,RJT,IDF
Product wetted steel parts	AISI304/AISI316L	Provided with material inspection report
Other steel parts	AISI304
Size	3/4"~6",DN20~DN150,19mm~152.4mm
Seal material	EPDM/VMQ/FPM	All seals material comply with FDA21CFR117.2600
Working pressure	≤10bar(145psi)
Supply pressure for air actuator	5~8(0~116psi)
Working temperature	EPDM:-14~248ºF(-10~120ºC)
	VMQ:-58~356ºF(-50~180ºC)
	FPM:22~446ºF(-30~230ºC)
	Other materials are avaible upon request
Sterilization temperature	302ºF(150ºC,max 20min)
Outside surface treatment	Ra16~32uin(o.4~0.8um)
Inside surface treatment	Ra32~64uin(o.8~1.6um)
Connetion ends	butt-weld,clamped ends,male ends, flange ends
Pneumatic head	Normally closed(NC)-Air to open,spring to close
	Normally open(NO)-Air to close,spring to open
	Air to air(AA)-Air to open,air to close
