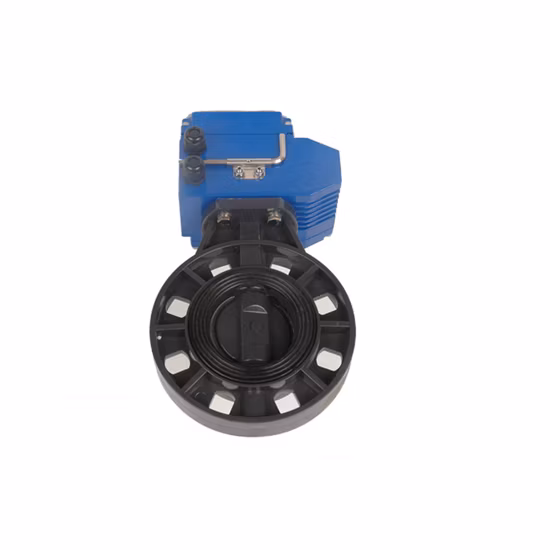

UPVC Butterfly Valve with Electric Actuator on

Basic Info.

Con.	ISO 5211, Star Square, Torque, Thrust
Control Type	on-off, Passive Contact, Modulating
Transport Package	Carton, Plywood Case
Specification	JTC-05/10/20/40/50/60/100/200
Trademark	TYCHEN/OEM
Origin	Zhejiang
HS Code	8501400000
Production Capacity	50000pieces/Month

Product Description

UPVC Butterfly Valve With Electric Actuator On-off 220V AC, 24V DC

Advantage
1. High precision and sensitivity
2. Easy to operate with other electric adjustment instruments
3. Simple to install

DATA SHEET FOR ELECTRIC ACTUATORS
General	Actuator Type	Motor Operated
	Relative Humidity (Min/Max) %	20% - 80%
	Service	On -Off / Modulation / Passive Contact
Electric Actuator	Opening Time: Full Open	5s /10s /15s / 30s / 50s / 60s /100s
	Opening Time: Full Close	5s /10s /15s / 30s / 50s / 60s /100s
	Enclosure	IP67
	Hand Wheel for Manual Operation Clockwise to	Close
	Torque Output (Nm)	50Nm- 2000Nm
	Rated Power (Kw)	50Hz /60Hz
	Rated Current (A)	AC220V/ AC380 V/ DC12V /DC24V
	Stroke	0 ~ 90°
	Control Signal	Impulsive
	Limit Protection	Yes
	Torque Protection	Yes
	Motor Protection when valve jams	Yes
	Thermostatic Protection	Yes
	Overloading and short circuit of control	Yes
	Surface Colour	Blue / Orange / Grey /Red
	Operation/ Maintenance Manual	Yes
	Test report and Certificates	CE

Product Specification

Product Details Show

Product Processing Show
Product Packing
Product Application

Workshop Show
