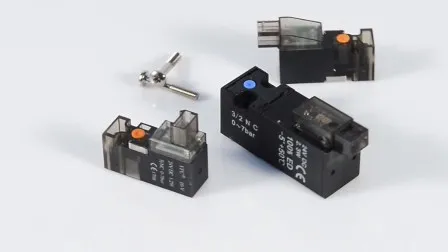

Vsv15mm Mini Sock Valve Sock Knitting Machine Vsv Series Micro Solenoid Valve
VSV15mm mini sock valve sock knitting machine VSV series Micro Solenoid valve High-frequency pilot head Frequency 15 Hz
Basic Info.
| Model NO. | VSV15mm |
| Actuator | Electric |
| Connection Form | Thread |
| Type | Pilot Operated |
| Material | Carbon Steel |
| Pressure | Medium |
| Valve Structure | Pilot Piston Structure |
| Power Supply | DC Solenoid Valve |
| Usage | Safety, Emptying, Drain, Flow Control |
| Standard | DIN |
| Application | Industrial Usage, Household Usage |
| Protection | IP65 |
| Insulation | H Class |
| Transport Package | Carton |
| Specification | CE, ROHS, SGS, ISO9001 |
| Trademark | VPC |
| Origin | Ningbo, China |
| HS Code | 848180 |
| Production Capacity | 5000000000000PCS/Year |
Product Description
VSV15mm mini sock valve sock knitting machine VSV series Micro Solenoid valve
| Model | VSV15-1.4LV | VSV15-1.4LH | VSV15-1.4LC |
| Working Medium | Clean Air(40µm filteration) | ||
| Acting Type | Direct Acting | ||
| Working Pressure | 0~0.7Mpa | ||
| Working Temperature | -5~50°c | ||
| Response Time | ≤20m/s | ||
| Max Acting Frequency | 20 times/s | ||
| Manual Operated Type | Button | ||
| Lubricate | No required | ||
| Heat Resistant Grade | F | ||
| Protective Class | IP65 | ||
| Standard Voltage | DC24V | ||
| Allawable Voltage Range | ±10% | ||
| Orifice | 1.4mm | ||
| Wattage | 2.3watts(with indicator light) | ||
| Plug Type | Vertical | Horizontal | Pin |
High-frequency pilot head
Frequency 15 Hz (15 times/s) or more Single/Double coils are optional , can be arbitrarily matched 1.2W low power consumption,energy efficiency environmentally friendly
Pluggable wiring
Using 0.06mm enameled wires imported fromGermany guaranteed temperature260°,high safety performance
Ordering Code VSV series VSV 15 - 1.4l V VSV→Type Code VSV:Micro Solenviod Valve 15→Ways 15:15mm valve body V→Orifice 1.4:1.4mm V→Coil Type V:Vertical Type H:Horizontal Type C:Pin Type
