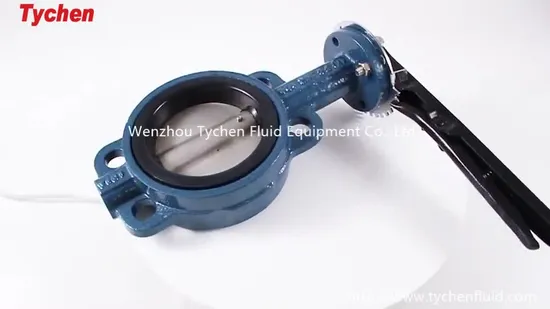

Wafer Butterfly Valve with on

Basic Info.

Connection Form	Wafer
Structure	Centre Sealing
Seal Form	Auto Sealed
Valve Stem	Normal
Work Pressure	Mid-Pressure (2.5mpa< Pn <6.4mpa)
Working Temperature	Normal Temperature (-40°C<T<120°C)
Material of Seal Surface	Soft Sealed
Valve Body	Casting
Application	Industrial Usage, Water Industrial Usage, Household Usage
Control Type	on-off, Passive Contact, Modulating
Con.	ISO 5211, Star Square, Torque, Thrust
Transport Package	Carton, Plywood Case
Specification	DN50-DN600
Trademark	TYCHEN/OEM
Origin	Zhejiang
HS Code	8501400000
Production Capacity	50000pieces/Month

Product Description

Wafer Butterfly Valve With On-off/Modulating Type Electric Actuator 220V AC/110V AC/24V DC

Advantage

1. High precision and sensitivity
2. Easy to operate with other electric adjustment instruments
3. Simple to install

Product Specification

Product Details Show

Product Processing Show

Product Packing

Product Application

Workshop Show

Contact Us

Mob: +86-13600679517; +86-18057721628 Web: tychenfluid.en.made-in-china.com

DATA SHEET FOR ELECTRIC ACTUATORS
General	Actuator Type	Motor Operated
	Relative Humidity (Min/Max) %	20% - 80%
	Service	On -Off / Modulation / Passive Contact
Electric Actuator	Opening Time: Full Open	5s /10s /15s / 30s / 50s / 60s /100s
	Opening Time: Full Close	5s /10s /15s / 30s / 50s / 60s /100s
	Enclosure	IP67
	Hand Wheel for Manual Operation Clockwise to	Close
	Torque Output (Nm)	50Nm- 2000Nm
	Rated Power (Kw)	50Hz /60Hz
	Rated Current (A)	AC220V/ AC380 V/ DC12V /DC24V
	Stroke	0 ~ 90°
	Control Signal	Impulsive
	Limit Protection	Yes
	Torque Protection	Yes
	Motor Protection when valve jams	Yes
	Thermostatic Protection	Yes
	Overloading and short circuit of control	Yes
	Surface Colour	Blue / Orange / Grey /Red
	Operation/ Maintenance Manual	Yes
	Test report and Certificates	CE
