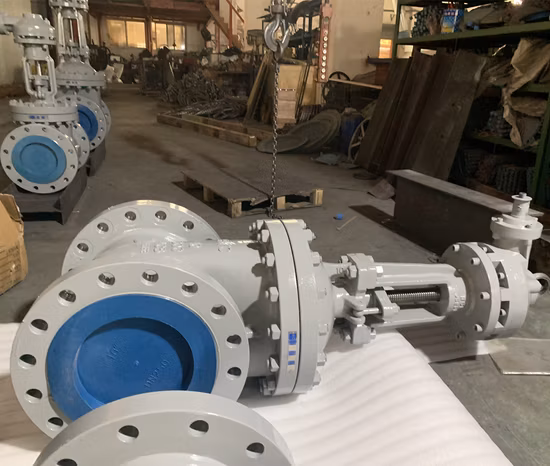

Rising Stem Cast Steel Full Bore Double Flanged OS&Y Wedge API 600 Gate Valve (China Manufacturer price)
|Connection Form||Double Flanged|
|Actuator||Bevel Gearbox, Handwheel|
|Seal Surface||Wedge Gate Valve|
|Thread Position of Valve Rod||Outside Gate Valve|
|Bonnet Type||Bolted Bonnet|
|Pressure Rating||Cl150-Cl900 (Pn10-Pn160)|
|Warranty Time||120 Days After Shipment|
|Certificates||API 6D, CE, ISO9001, Eac 010/032, API 607, Sil, Is|
|End Connection||ASME B16.5, ASME B16.47|
|Size Range||Nps 2- Nps 42 (DN50-DN1200)|
|Inspection and Test||API 598, En 12266|
|Face to Face||ASME B16.10|
|Design||ASME B16.34, API 600|
|Transport Package||Plywood Case|
|Specification||12′′ (DN300, 300mm)|
|Production Capacity||1000 Sets Per Month|
Packaging & DeliveryPackage Size 110.00cm * 89.00cm * 80.00cm Package Gross Weight 250.000kg
OS&Y wedge type gate valve is a gate for opening and closing parts. The movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled
1. Small flow resistance. The medium channel inside the valve body is straight, the medium flows in a straight line, and the flow resistance is small.
2. Less effort when opening and closing. It is compared with the globe valve, because whether it is open or closed, the direction of movement of the gate is perpendicular to the direction of medium flow.
3. Large height and long opening and closing time. The opening and closing stroke of the gate is relatively large, and the lifting is carried out by the screw.
4. Water hammer is not easy to produce. The reason is the long closing time.
5. The medium can flow in any direction on both sides, easy to install. Both sides of the gate valve channel are symmetrical.
6. The structural length (the distance between the two connecting end faces of the shell) is small.
7. Simple shape, short structure length, good manufacturing technology and wide application range.
8. Compact structure, good valve rigidity, smooth passage, small flow resistance, stainless steel and hard alloy sealing surface, long service life, PTFE packing, reliable sealing, light and flexible operation.
|Standard:||API 600, API 603, ASME B16.34, ASME B16.25|
|Body material||Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel|
|End connection||RF, BW, RTJ,|
|Operation||Manual, Pneumatic, Electric, Hydraulic|
Jitai Valve Group is a genuine valve manufacturer.
- 7000-sqm factory
- 100 employees
- 5+ senior engineers
- 30+ design patents
- 2 million sets of valves delivered
- 20 million USD annual revenue
- Gate valves
- Globe valves
- Check valves
- Ball valves
- Butterfly valves
- API valves
- Steam valves
- High pressure valves
- High temperature valves
- Power Plant valves
- Heavy-duty valve expert with proven expertise in harsh environment;
- Stringent quality control and traceable reports to provide zero-defect products;
- Rugged and durable configuration according to API, ASME, BS, JIS, EN standards;
- All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components;
- Complete BV cerified report can be viewed and downloaded on our page About us
Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.
Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.
Q: Can you do non destructive test for valve components ?
A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc
Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.
Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.
Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.
Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 14 days
